Total Body Irradiation - Accuray

< View All Plan Studies

RADIXACT SYSTEM

Total Body Irradiation

Case History

AGE: 76-year-old
GENDER: Male

Medical History

Immidiate tolerance: Grade II dermatitis with eyelid edema, Grade I conjunctivitis resolved with Sterdex

Diagnosis: Squamous cell carcinoma of the right lower eyelid

Planning CT Images

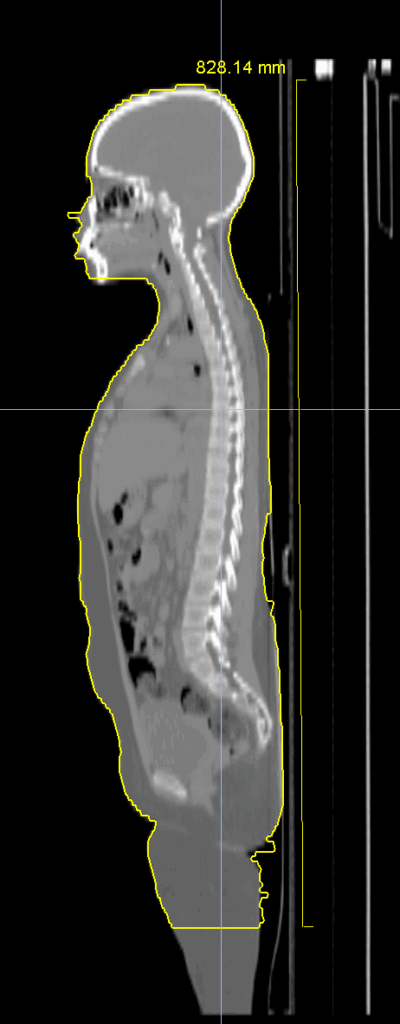

TBI HFS CT sag

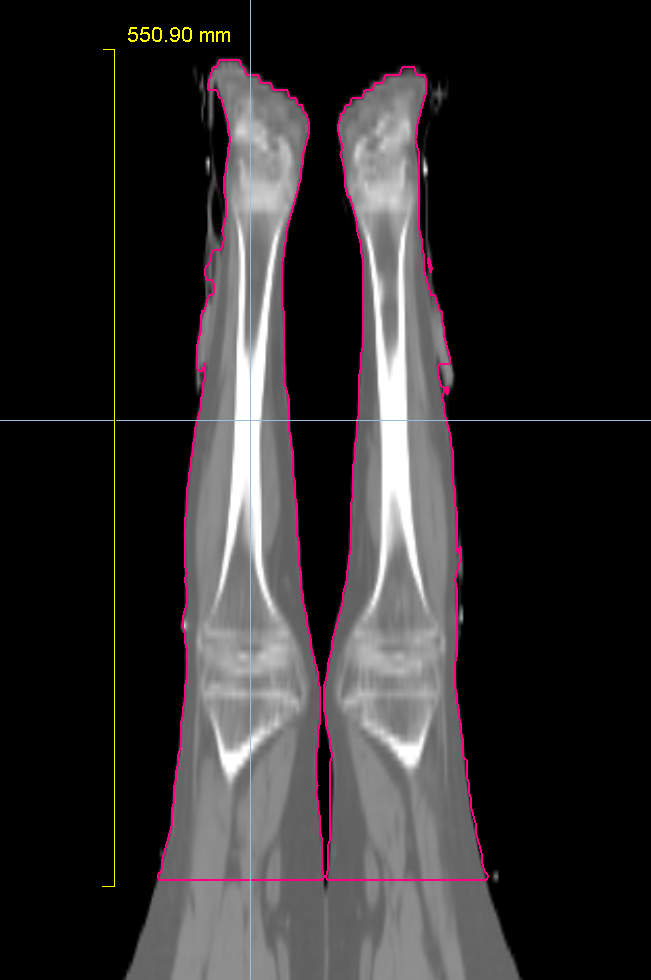

TBI FFS CT coronal

TBI HFS CT coronal

Treatment Plan Images

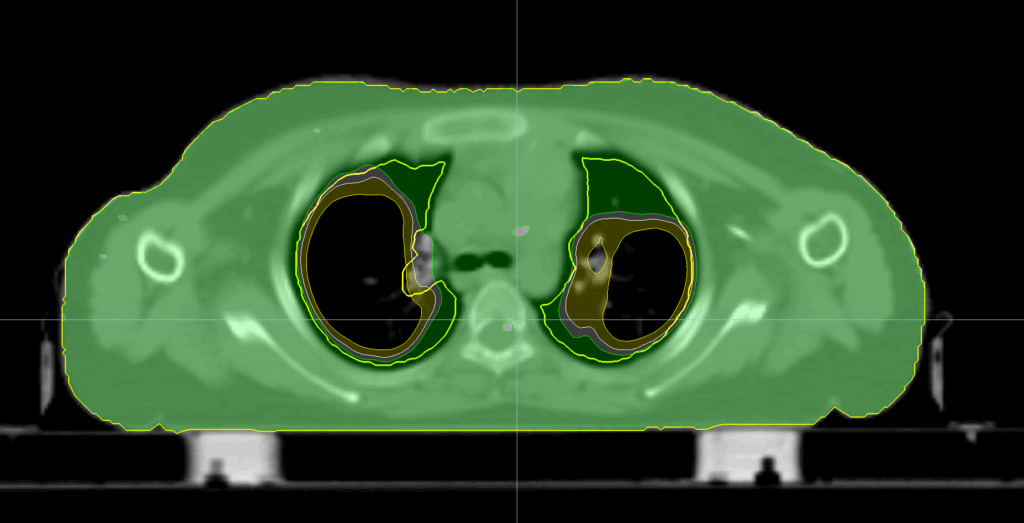

TBI HFS axial dose

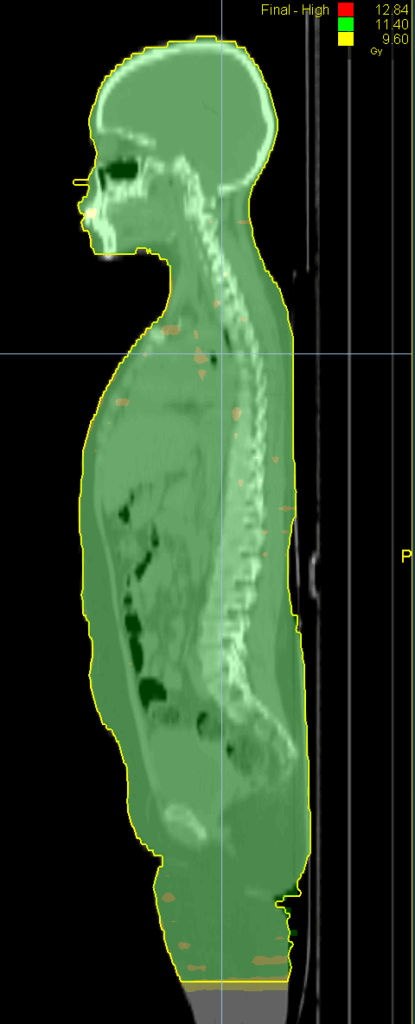

TBI HFS sag dose

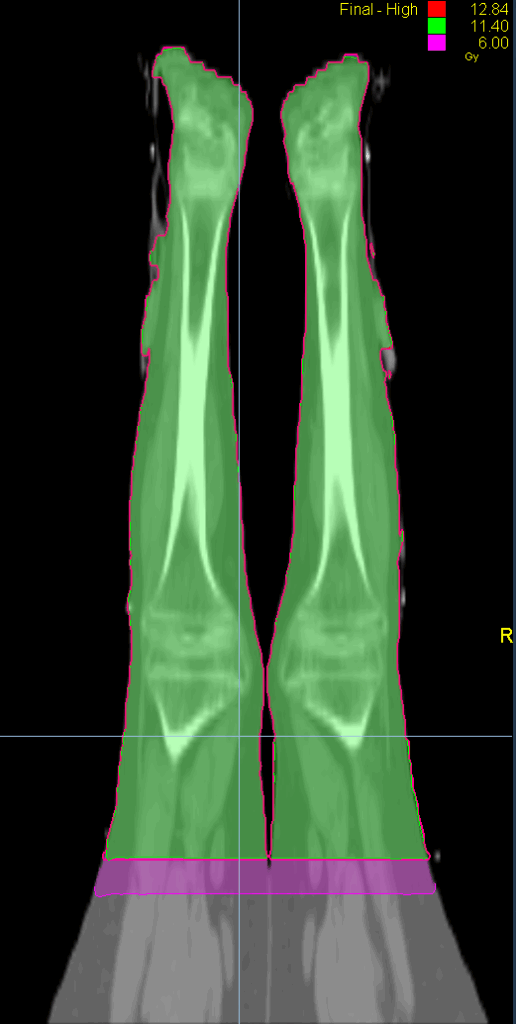

TBI FFS coronal dose

TBI HFS coronal dose

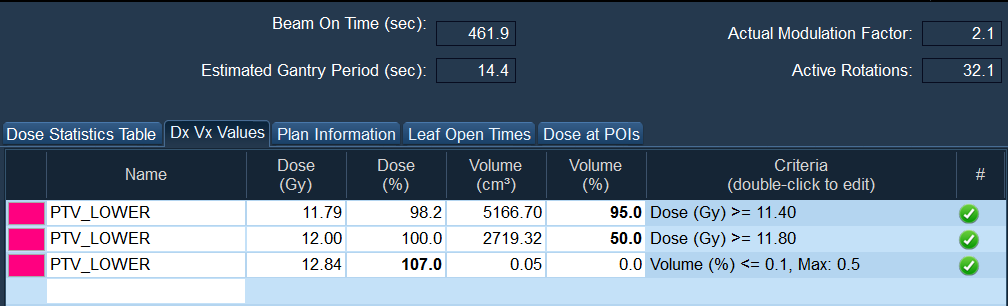

TBI FFS DxVx

TBI HFS stats

TBI HFS DxVx

TBI HFS DVH

ClearRT® Images

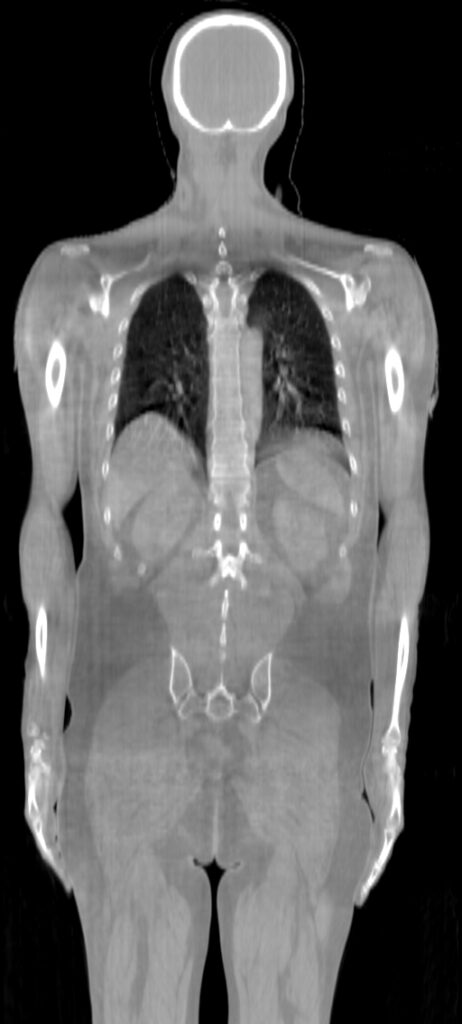

ClearRT TBI Coronal

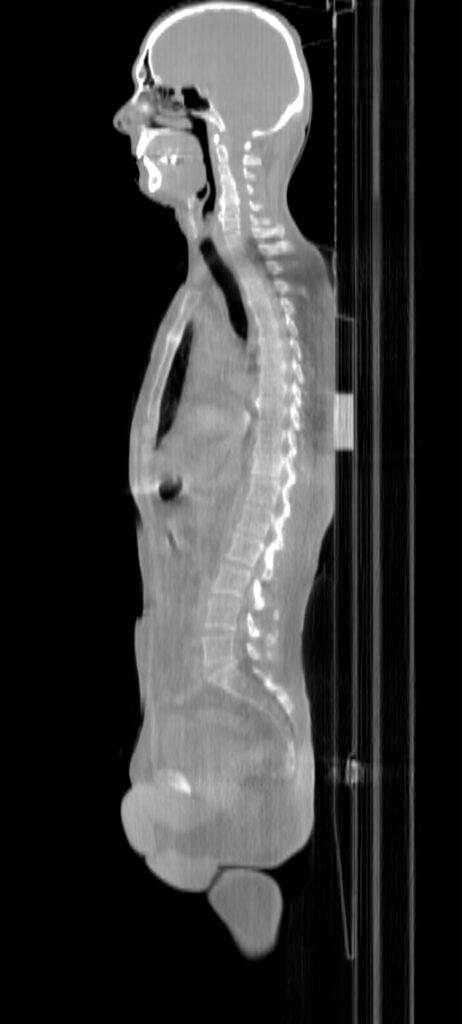

ClearRT TBI Sagittal

Treatment Planning Highlights

Fractionation / Protocol Used

12 Gy in 6 fractions

PTV(s) Volume, Length

27500 cc, 84 cm

5440 cc, 64cm

Mode

TomoHelical™ 5 cm
TomoHelical™ 5 cm

Planning Time Optimized with VOLO™ Ultra

35 min

20 min

Treatment Delivery Information

Imaging Information

ClearRT®

Protocol

Whole body-mediumFOV 50cm

Scan Length

84 cm / 1 min

KVCT Imaging Time

64 cm / 34 sec

Beam on Time

15.6 min snd 7.6 min
